# Knowage快速入门

<br>

<figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/en/knowage/knowage-gui-websoft9.png" alt=""><figcaption></figcaption></figure>

部署 创达睿通 提供的 Knowage 之后，请参考下面的步骤快速入门。

### 准备[​](https://support.websoft9.com/docs/knowage#%E5%87%86%E5%A4%87) <a href="#zhun-bei" id="zhun-bei"></a>

1. 在云控制台获取您的 **服务器公网 IP 地址**
2. 在云控制台安全组中，检查 **Inbound（入）规则** 下的 **TCP:80** 端口是否开启
3. 在服务器中查看 Knowage 的 **默认账号和密码**
4. 若想用域名访问 Knowage，务必先完成\*\*域名五步设置\*\* 过程

### Knowage 初始化向导[​](https://support.websoft9.com/docs/knowage#knowage-%E5%88%9D%E5%A7%8B%E5%8C%96%E5%90%91%E5%AF%BC) <a href="#knowage-chu-shi-hua-xiang-dao" id="knowage-chu-shi-hua-xiang-dao"></a>

#### 详细步骤[​](https://support.websoft9.com/docs/knowage#%E8%AF%A6%E7%BB%86%E6%AD%A5%E9%AA%A4) <a href="#xiang-xi-bu-zhou" id="xiang-xi-bu-zhou"></a>

1. 使用本地电脑的浏览器访问网址： *<http://域名/knowage>* 或  *<http://服务器公网IP/knowage>*, 进入登录界面&#x20;

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/en/knowage/knowage-login-websoft9.png" alt=""><figcaption></figcaption></figure>
2. 输入账号密码，成功登录到 Knowage 后台<br>

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/en/knowage/knowage-backend-websoft9.png" alt=""><figcaption></figcaption></figure>
3. 打开【Profile Management】>【Users Management】 修改密码&#x20;

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/en/knowage/knowage-changepw-websoft9.png" alt=""><figcaption></figcaption></figure>

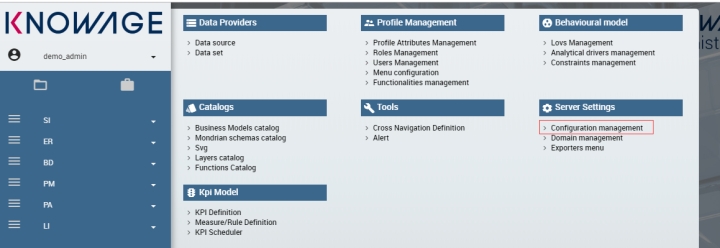

4. 打开【Server Settings】>【Configuration Management】 配置 Knowage&#x20;

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/en/knowage/knowage-confmanagement-websoft9.png" alt=""><figcaption></figcaption></figure>

> 需要了解更多 Knowage 的使用，请参考官方文档：Knowage Documentation

#### 出现问题？[​](https://support.websoft9.com/docs/knowage#%E5%87%BA%E7%8E%B0%E9%97%AE%E9%A2%98) <a href="#chu-xian-wen-ti" id="chu-xian-wen-ti"></a>

若碰到问题，请第一时刻联系 **技术支持**。也可以先参考下面列出的问题定位或 **FAQ** 尝试快速解决问题。

**无法进入登录页面？**

因为 Knowage 应用比较消耗资源，4G 内存的服务器虽然也能运行，初始化过程比较慢，请耐心等待几分钟后再试。

### Knowage 使用入门[​](https://support.websoft9.com/docs/knowage#knowage-%E4%BD%BF%E7%94%A8%E5%85%A5%E9%97%A8) <a href="#knowage-shi-yong-ru-men" id="knowage-shi-yong-ru-men"></a>

下面我们以一个完整的示例（**可视化呈现订单中不同国家的订单总额**），介绍如何使用 Knowage 快速分析数据。 基本步骤分为 4 步：连接数据源，数据建模，配置数据，数据可视化呈现。前 2 步为 IT 人员准备数据，后 2 步为业务人员的自助分析。

1. 连接数据源
2. 数据建模
3. 配置数据集：业务人员从模型中二次筛选数据，分析和呈现；
4. 数据呈现，设置可视化呈现方式（CHART）。根据场景也可以将数据以其他的可视化业务报表（仪表盘）呈现，供决策分析使用。
5. 选择数据集
6. 配置数据项

### Knowage 常用操作[​](https://support.websoft9.com/docs/knowage#knowage-%E5%B8%B8%E7%94%A8%E6%93%8D%E4%BD%9C) <a href="#knowage-chang-yong-cao-zuo" id="knowage-chang-yong-cao-zuo"></a>

#### 连接数据源[​](https://support.websoft9.com/docs/knowage#datasource) <a href="#datasource" id="datasource"></a>

以连接 MySQL 为例，登录 Knowage，进入主面板，选择>【Data source】

#### 数据建模[​](https://support.websoft9.com/docs/knowage#datamodel) <a href="#datamodel" id="datamodel"></a>

根据业务场景从数据源中选取数据，建模

### Knowage 参数[​](https://support.websoft9.com/docs/knowage#knowage-%E5%8F%82%E6%95%B0) <a href="#knowage-can-shu" id="knowage-can-shu"></a>

Knowage 应用中包含 Nginx, Docker, MariaDB 等组件，可通过 **通用参数表** 查看路径、服务、端口等参数。

通过运行`docker ps`，可以查看到 Knowage 运行时所有的 Container：

```
CONTAINER ID   IMAGE                                              COMMAND                  CREATED        STATUS                 PORTS                               NAMES
3b30d327e903   mariadb:10.3                                       "docker-entrypoint.s…"   2 hours ago    Up 2 hours             0.0.0.0:3307->3306/tcp              knowage-mariadb-server
a28572948615   knowagelabs/knowage-server-docker:8.0.0-SNAPSHOT   "./entrypoint.sh ./a…"   2 hours ago    Up 2 hours (healthy)   0.0.0.0:8080->8080/tcp              knowage-server
90d49e9971bf   mariadb:10.3                                       "docker-entrypoint.s…"   2 hours ago    Up 2 hours             3306/tcp                            knowage-mariadb-cache
fa5d3ce16865   knowagelabs/knowage-python-docker:8.0.0-SNAPSHOT   "./entrypoint.sh gun…"   2 hours ago    Up 2 hours (healthy)   5000/tcp                            knowage-python
7fbfe56727d5   knowagelabs/knowage-r-docker:8.0.0-SNAPSHOT        "./entrypoint.sh r k…"   2 hours ago    Up 2 hours (healthy)   5001/tcp                            knowage-r
```

下面仅列出 Knowage 本身的参数：

#### 路径[​](https://support.websoft9.com/docs/knowage#path) <a href="#path" id="path"></a>

Knowage 安装目录： */data/apps/knowage*\
Knowage 资源目录： */data/apps/knowage/data/knowage*

#### 端口[​](https://support.websoft9.com/docs/knowage#port) <a href="#port" id="port"></a>

无特殊端口

#### 版本[​](https://support.websoft9.com/docs/knowage#%E7%89%88%E6%9C%AC) <a href="#ban-ben" id="ban-ben"></a>

```
# Knowage Version
docker images |grep knowagelabs |awk '{print $2}' |head -1 |cut -d- -f1
```

#### 服务[​](https://support.websoft9.com/docs/knowage#%E6%9C%8D%E5%8A%A1) <a href="#fu-wu" id="fu-wu"></a>

```
sudo docker  start | stop | restart | status knowage-server
sudo docker  start | stop | restart | status knowage-python
sudo docker  start | stop | restart | status knowage-r
sudo docker  start | stop | restart | status knowage-mariadb-server
sudo docker  start | stop | restart | status knowage-mariadb-cache
```

#### 命令行[​](https://support.websoft9.com/docs/knowage#%E5%91%BD%E4%BB%A4%E8%A1%8C) <a href="#ming-ling-hang" id="ming-ling-hang"></a>

Knowage 暂未提供命令行工具

#### API[​](https://support.websoft9.com/docs/knowage#api) <a href="#api" id="api"></a>

Knowage API 采用 REST API 2.0 规范。Knowage REST API 旨在管理 Knowage 分析文档和数据集的生命周期。


---
