# Redmine快速入门

<br>

<figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/zh/redmine/redmine-gui-websoft9.jpg" alt=""><figcaption></figcaption></figure>

### 准备[​](https://support.websoft9.com/docs/redmine#%E5%87%86%E5%A4%87) <a href="#zhun-bei" id="zhun-bei"></a>

部署 创达睿通 提供的 Redmine 之后，需完成如下的准备工作：

1. 在云控制台获取您的 **服务器公网IP地址**
2. 在云控制台安全组中，确保 **Inbound（入）规则** 下的 **TCP:80** 端口已经开启
3. 在服务器中查看 Redmine 的 **默认账号和密码**
4. 若想用域名访问 Redmine **域名五步设置** 过程

### Redmine 初始化向导[​](https://support.websoft9.com/docs/redmine#init) <a href="#init" id="init"></a>

#### 详细步骤[​](https://support.websoft9.com/docs/redmine#%E8%AF%A6%E7%BB%86%E6%AD%A5%E9%AA%A4) <a href="#xiang-xi-bu-zhou" id="xiang-xi-bu-zhou"></a>

1. 使用本地 Chrome 或 Firefox 浏览器访问网址：*<http://域名>* 或 *<http://服务器公网IP>*, 进入Redmine主页。

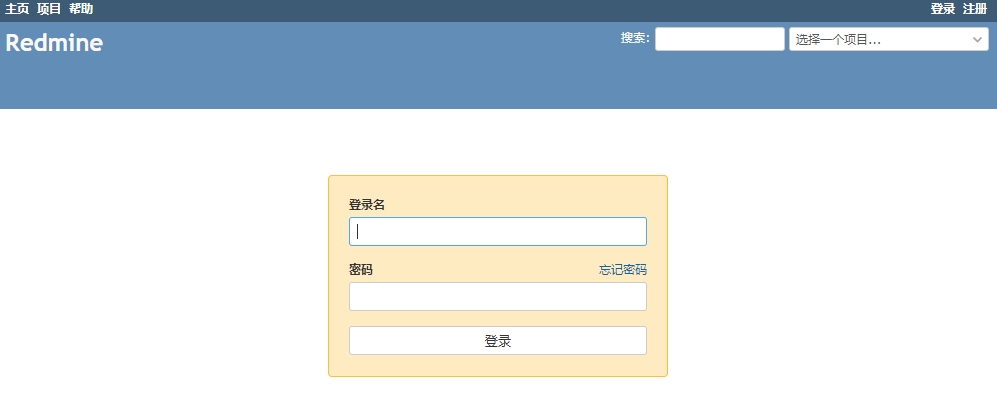

2. 点击【登录】，进入系统&#x20;

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/zh/redmine/redmine-login-websoft9.png" alt=""><figcaption></figcaption></figure>
3. 进入 Redmine 控制台，系统提示修改密码&#x20;

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/zh/redmine/redmine-resetpwf-websoft9.png" alt=""><figcaption></figcaption></figure>

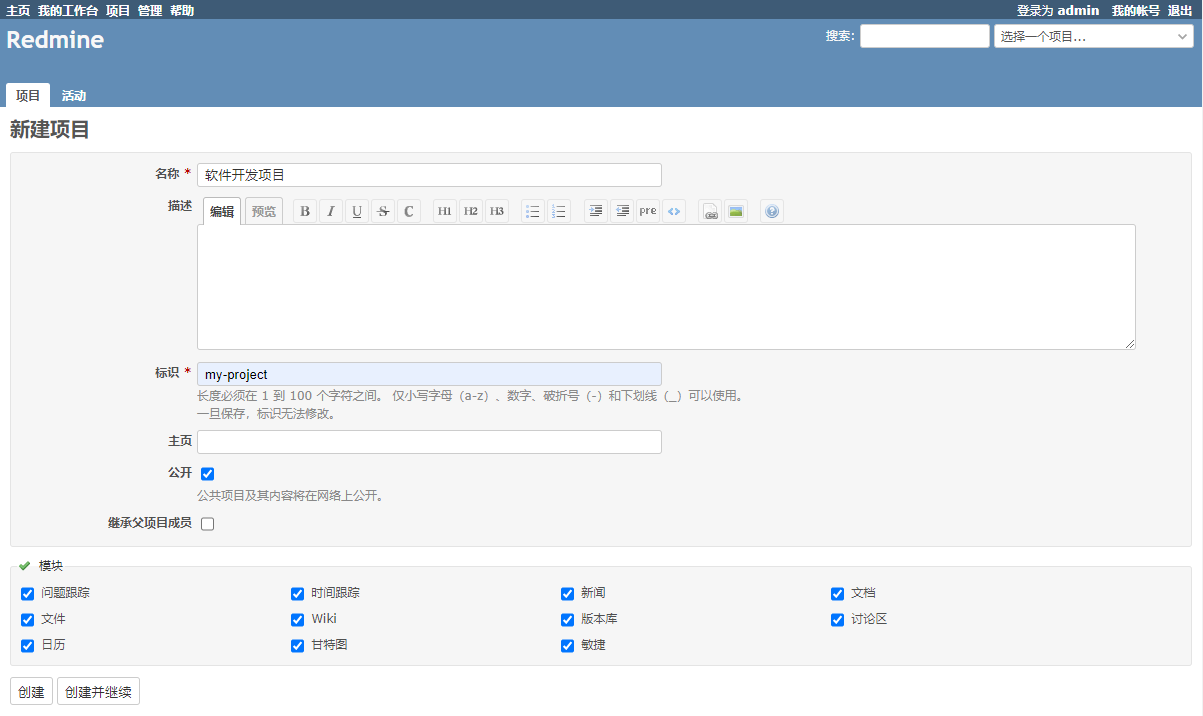

4. 打开：【项目】，新建一个项目&#x20;

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/zh/redmine/redmine-createproject-websoft9.png" alt=""><figcaption></figcaption></figure>

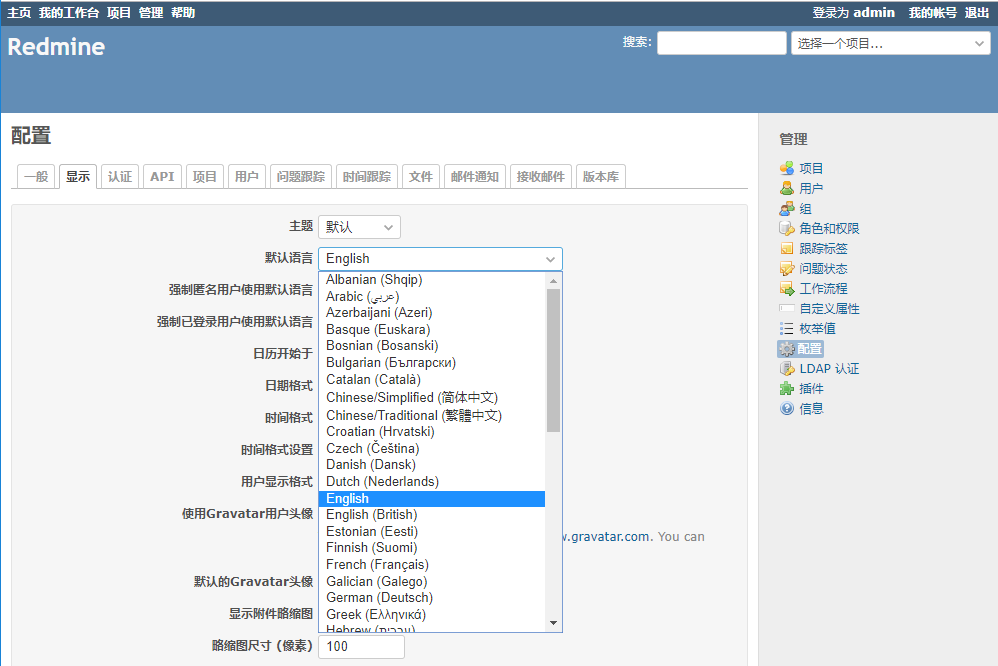

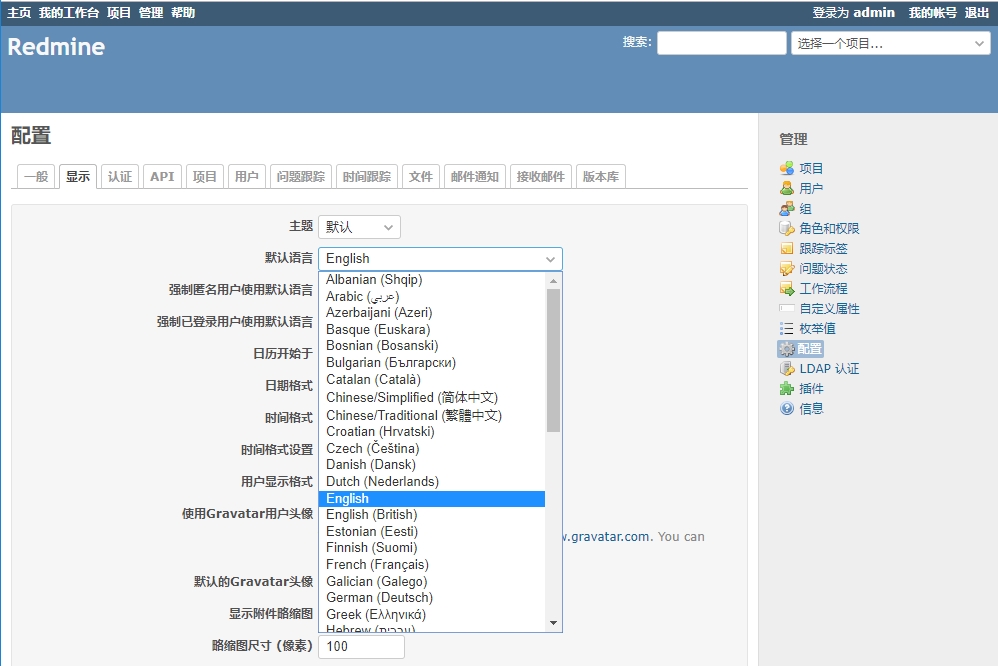

5. 通过：【管理】>【配置】>【显示】，设置 Redmine 项目区语言&#x20;

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/zh/redmine/redmine-language-websoft9.png" alt=""><figcaption></figcaption></figure>

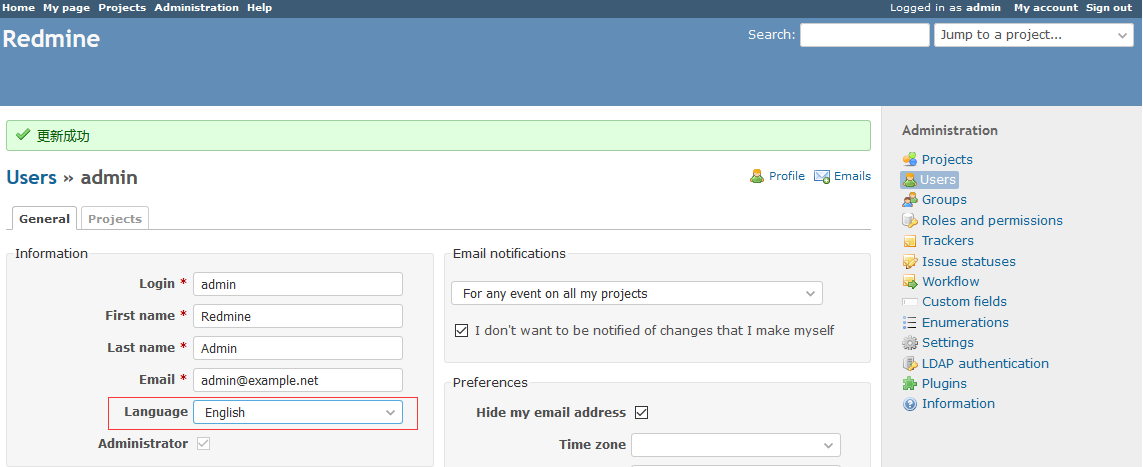

6. 通过：【管理】>【配置】>【用户】，设置 Redmine 用户语言（区别于项目区语言）&#x20;

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/en/redmine/redmine-userlanguage-websoft9.png" alt=""><figcaption></figcaption></figure>
7. 激活新注册用户：通过【管理】>【用户】，在【状态】选项中选择 已注册用户，然后激活用户，该用户才能登陆。

> 需要了解更多 Redmine 的使用和配置，请参考官方文档：Redmine guide

#### 出现问题？[​](https://support.websoft9.com/docs/redmine#%E5%87%BA%E7%8E%B0%E9%97%AE%E9%A2%98) <a href="#chu-xian-wen-ti" id="chu-xian-wen-ti"></a>

若碰到问题，请第一时刻联系 **技术支持**。也可以先参考下面列出的问题定位或 **FAQ** 尝试快速解决问题：

**Redmine能打开，但总是出现502错误**

Redmine 所需内存最低为2G，若服务器配置较低或并发访问超过服务器计算能力，会出现502错误

### Redmine 使用入门[​](https://support.websoft9.com/docs/redmine#redmine-%E4%BD%BF%E7%94%A8%E5%85%A5%E9%97%A8) <a href="#redmine-shi-yong-ru-men" id="redmine-shi-yong-ru-men"></a>

下面以 **Redmine 管理项目** 作为一个任务，帮助用户快速入门：

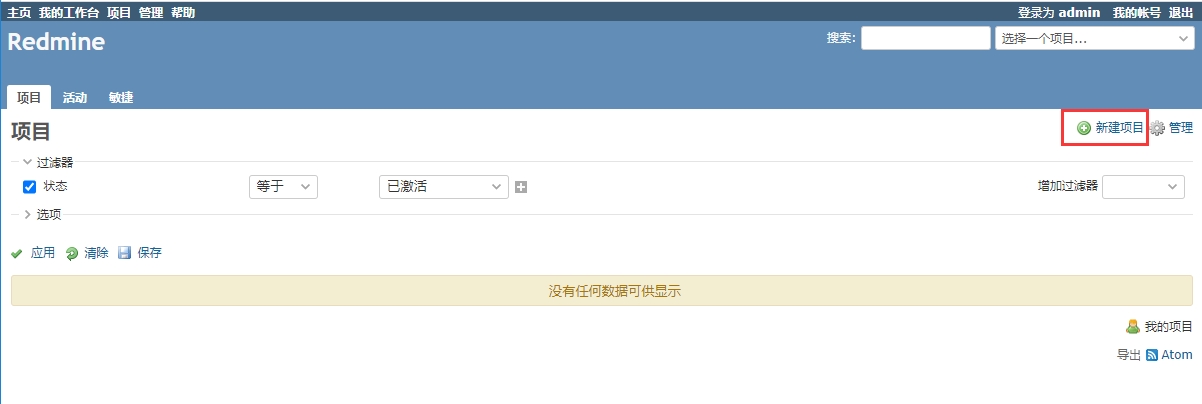

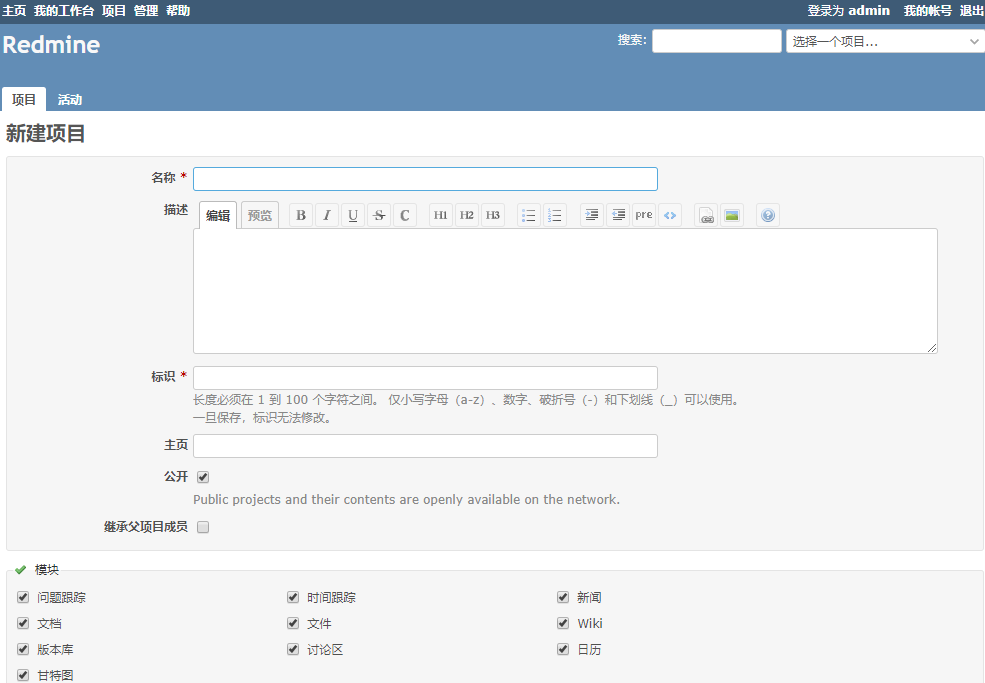

1. 登录 Redmine，依次打开：【项目】>【创建项目】&#x20;

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/zh/redmine/redmine-createproject001-websoft9.png" alt=""><figcaption></figcaption></figure>

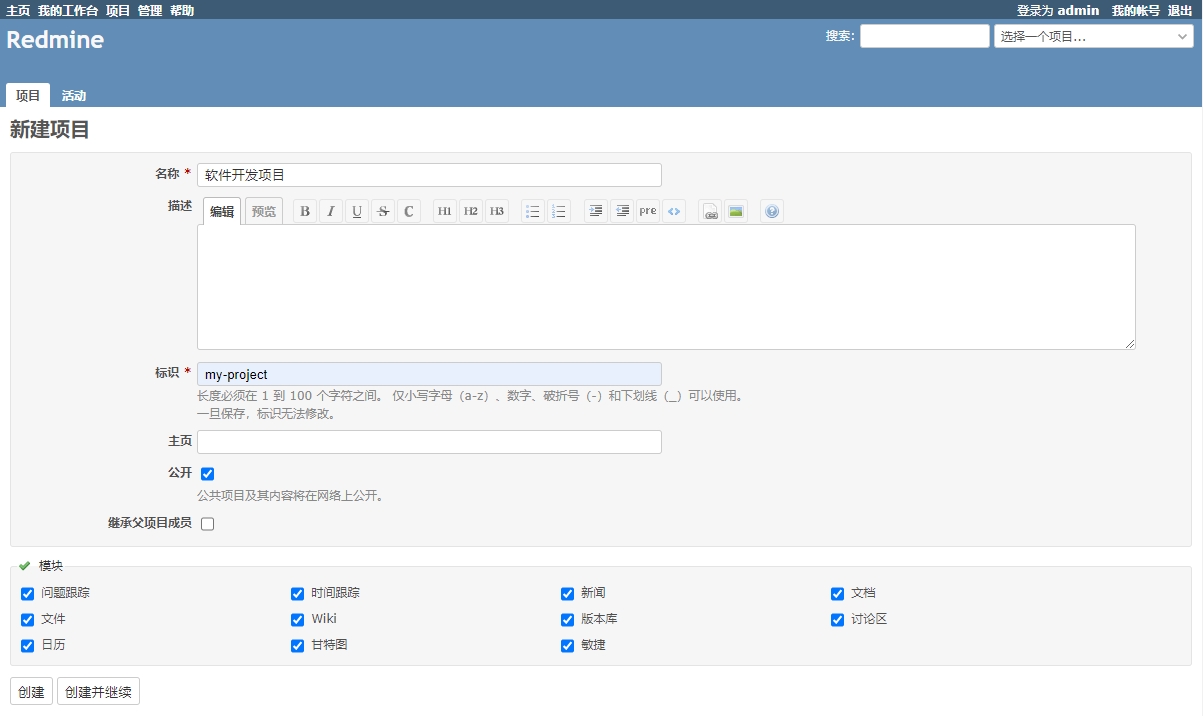

2. 填写上面标题和英文缩写，保存&#x20;

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/zh/redmine/redmine-createproject002-websoft9.png" alt=""><figcaption></figcaption></figure>

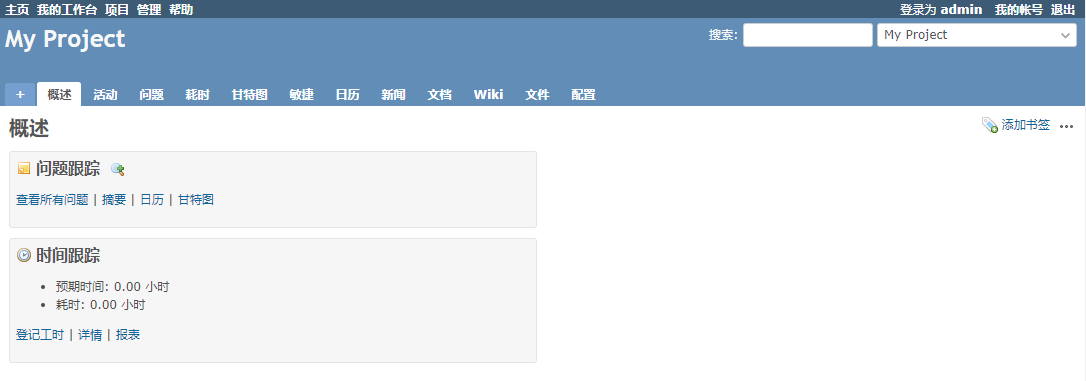

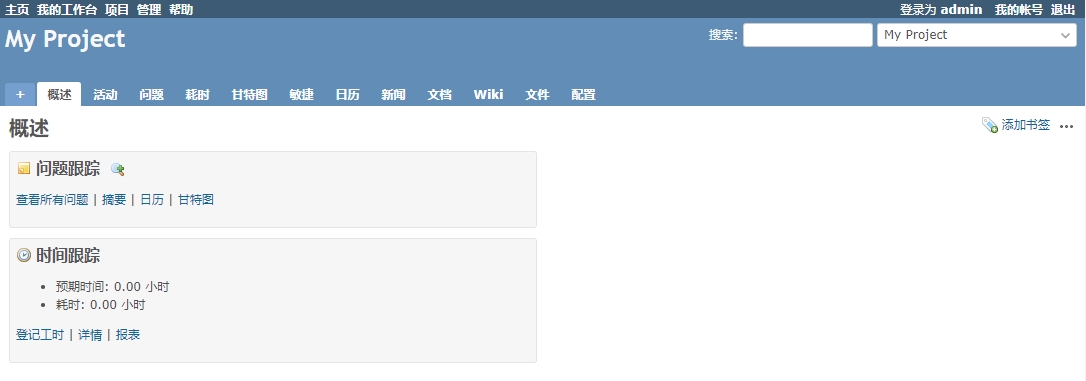

3. 打开项目页面，开始工作&#x20;

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/zh/redmine/redmine-createproject003-websoft9.png" alt=""><figcaption></figcaption></figure>
4. 安装插件，增加更多所需的功能

### Redmine 常用操作[​](https://support.websoft9.com/docs/redmine#redmine-%E5%B8%B8%E7%94%A8%E6%93%8D%E4%BD%9C) <a href="#redmine-chang-yong-cao-zuo" id="redmine-chang-yong-cao-zuo"></a>

#### 配置 SMTP[​](https://support.websoft9.com/docs/redmine#smtp) <a href="#smtp" id="smtp"></a>

1. 在邮箱管理控制台获取 SMTP 相关参数
2. 通过 SFTP 连接服务器，修改 `configuration.yml` 文件，找到 “production:”, 在 production 下面添加并完善你的 SMTP 参数:

   ```
   production:
   delivery_method: :smtp
   smtp_settings:
      address: smtp.exmail.qq.com
      port: 465
      ssl: true
      enable_starttls_auto: true
      domain: imdcinsights.com
      authentication: :login
      user_name: help@imdcinsights.com
      password: ********

   ```

   > 注意缩进/空格,按照规定格式配置，否则Redmine报错
3. 重启 Redmine 服务后生效

   ```
   sudo docker restart redmine
   ```

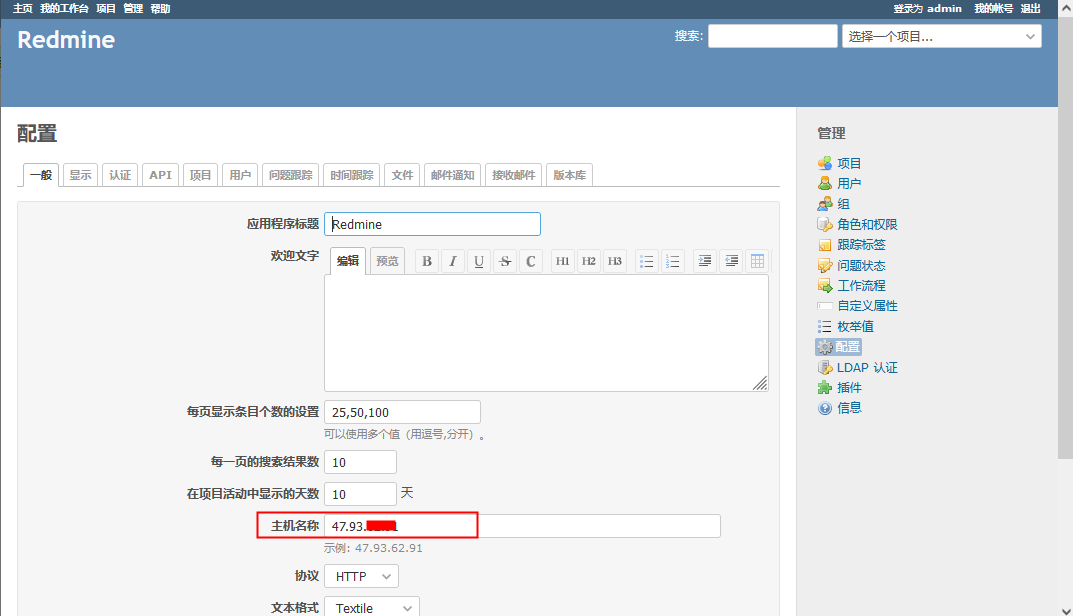

4. 配置系统主机：【管理】-【配置】-【一般】-【主机名称】

![](https://libs.websoft9.com/Websoft9/DocsPicture/zh/redmine/redmine-sethost-websoft9.png)

5. 配置系统邮件发件人地址：【管理】-【配置】-【邮件通知】-【邮件发件人地址】,保存，点击最下方“发送测试邮件”进行测试

   <figure><img src="/files/SY564u3k4HctNH0oX3vV" alt=""><figcaption></figcaption></figure>

Redmine 官方提供了数十种不同 SMTP 配置方法，请参考官方文档： Email Configuration

#### 插件管理[​](https://support.websoft9.com/docs/redmine#%E6%8F%92%E4%BB%B6%E7%AE%A1%E7%90%86) <a href="#cha-jian-guan-li" id="cha-jian-guan-li"></a>

通过 Redmine 提供的插件中心可以扩展它的功能：

**安装插件**

下面以一个具体的插件为例说明如何安装插件：

1. 进入Ajax Redmine Issue Dynamic Edit 插件页面，获取其下载地址
2. 使用 SFTP 登录服务，分别运行如下命令

   ```
   # 进入 Redmine 目录
   cd /data/wwwroot/redmine
   wget https://www.redmine.org/attachments/download/25386/redmine_issue_dynamic_edit.zip
   unzip redmine_issue_dynamic_edit.zip
   docker cp redmine_issue_dynamic_edit redmine:/usr/src/redmine/plugins
   ```
3. 重启 Redmine 容器服务

   ```
   sudo docker restart redmine
   ```

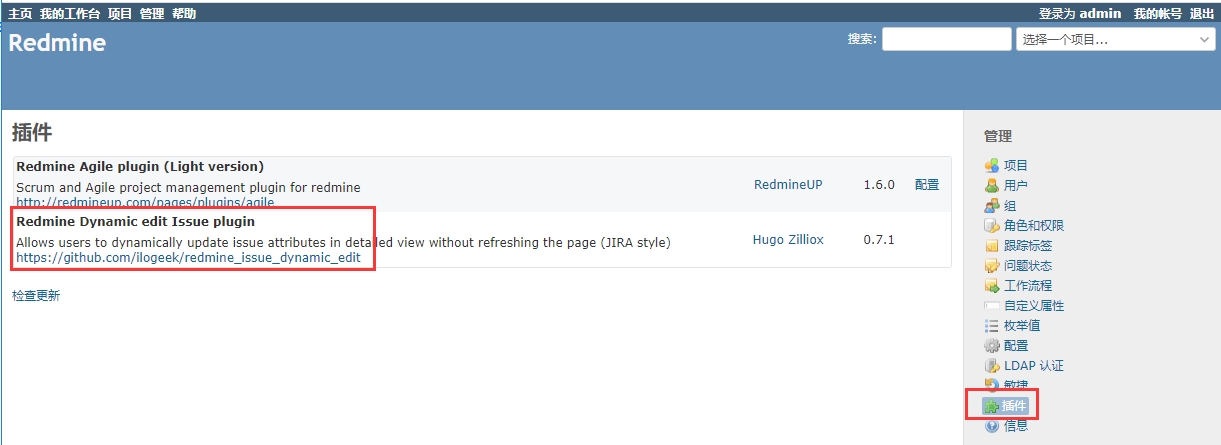

4. 登陆 Redmine 控制台查看插件&#x20;

   <figure><img src="https://libs.websoft9.com/Websoft9/DocsPicture/zh/redmine/redmine-installplugindy-websoft9.png" alt=""><figcaption></figcaption></figure>

**卸载插件**

1. 使用 SFTP 删除 /data/wwwroot/redmine/plugins 对应的插件
2. 重启 Redmine 容器生效

   ```
   sudo docker restart redmine
   ```

#### LDAP[​](https://support.websoft9.com/docs/redmine#ldap) <a href="#ldap" id="ldap"></a>

参考官方文档：<https://www.redmine.org/projects/redmine/wiki/RedmineLDAP>

### Redmine 参数[​](https://support.websoft9.com/docs/redmine#parameter) <a href="#parameter" id="parameter"></a>

Redmine 应用中包含 Nginx, Docker, MySQL, phpMyAdmin 等组件，可通过 **通用参数表** 查看路径、服务、端口等参数。

通过运行`docker ps`，可以查看到 Redmine 运行时所有的 Container：

```
CONTAINER ID   IMAGE               COMMAND                  CREATED          STATUS          PORTS                                                  NAMES
635cd1609242   phpmyadmin:latest   "/docker-entrypoint.…"   21 minutes ago   Up 21 minutes   0.0.0.0:9090->80/tcp, :::9090->80/tcp                  phpmyadmin
bcd0b75f04d7   redmine:4.2         "bash -c 'cat /my_cm…"   21 minutes ago   Up 21 minutes   0.0.0.0:9001->3000/tcp, :::9001->3000/tcp              redmine
b171c341fa90   mysql:5.7           "docker-entrypoint.s…"   21 minutes ago   Up 21 minutes   0.0.0.0:3306->3306/tcp, :::3306->3306/tcp, 33060/tcp   redmine-db
```

#### 路径[​](https://support.websoft9.com/docs/redmine#path) <a href="#path" id="path"></a>

Redmine 安装目录：*/data/apps/redmine*\
Redmine 站点目录：*/data/apps/redmine/data/redmine*\
Redmine 配置目录：*/data/apps/redmine/data/redmine/config*\
Redmine 配置文件：*/data/apps/redmine/data/redmine/config/configuration.yml*

> configuration.yml 是容器首次启动时基于 configuration.yml.example 而创建的

#### 端口[​](https://support.websoft9.com/docs/redmine#port) <a href="#port" id="port"></a>

无特殊端口

#### 版本[​](https://support.websoft9.com/docs/redmine#version) <a href="#version" id="version"></a>

```
docker inspect redmine:latest |grep REDMINE_VERSION |head -1 |cut -d= -f2
```

#### 服务[​](https://support.websoft9.com/docs/redmine#service) <a href="#service" id="service"></a>

```
sudo docker start | stop | restart redmine
sudo docker start | stop | restart redmine-db
sudo docker start | stop | restart phpmyadmin
```

#### 命令行[​](https://support.websoft9.com/docs/redmine#cli) <a href="#cli" id="cli"></a>

[Redmine-CLI](https://pypi.org/project/Redmine-CLI/)

#### API[​](https://support.websoft9.com/docs/redmine#api) <a href="#api" id="api"></a>

[Redmine API](https://www.redmine.org/projects/redmine/wiki/Rest_api)


---
