# Elastic Stack快速入门
部署 创达睿通 提供的 Elastic Stack 之后，请参考下面的步骤快速入门。
### 准备[](https://support.websoft9.com/docs/elastic#%E5%87%86%E5%A4%87)
1. 在云控制台获取您的 **服务器公网 IP 地址**
2. 在云控制台安全组中，检查 **Inbound（入）规则** 下的 **80** 和 **9200** 端口是否开启
3. 在服务器中查看 ELK 的 **默认账号和密码**
4. 若想用域名访问 ELK **域名五步设置** 过程
5. 登录云服务器，运行下面的命令，拉取 Elastic 相关 Docker 镜像并启动容器
```
cd /data/apps/elastic && docker compose pull && docker compose up -d
```
> Elastic Stack 开源版本 License 不允许第三方的分发行为，但允许用户免费使用。因此，用户使用本方案部署 Elastic Stack，请先执行上述命令自行拉取 Elastic Stack 镜像。
### Elastic Stack 初始化向导[](https://support.websoft9.com/docs/elastic#elastic-stack-%E5%88%9D%E5%A7%8B%E5%8C%96%E5%90%91%E5%AF%BC)
#### 详细步骤[](https://support.websoft9.com/docs/elastic#%E8%AF%A6%E7%BB%86%E6%AD%A5%E9%AA%A4)

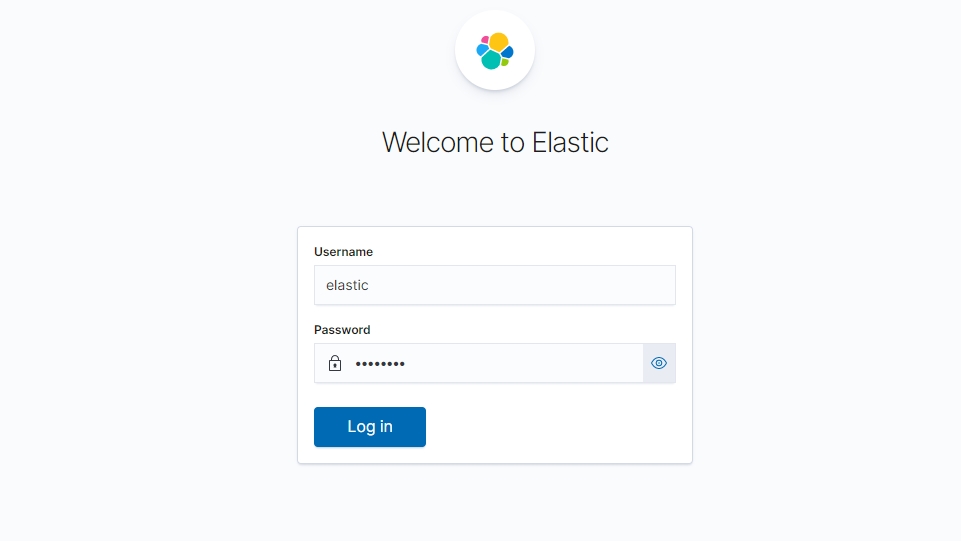

1. 使用本地电脑浏览器访问网址： ** 或 * IP*, 进入 Elastic Stack 登录界面

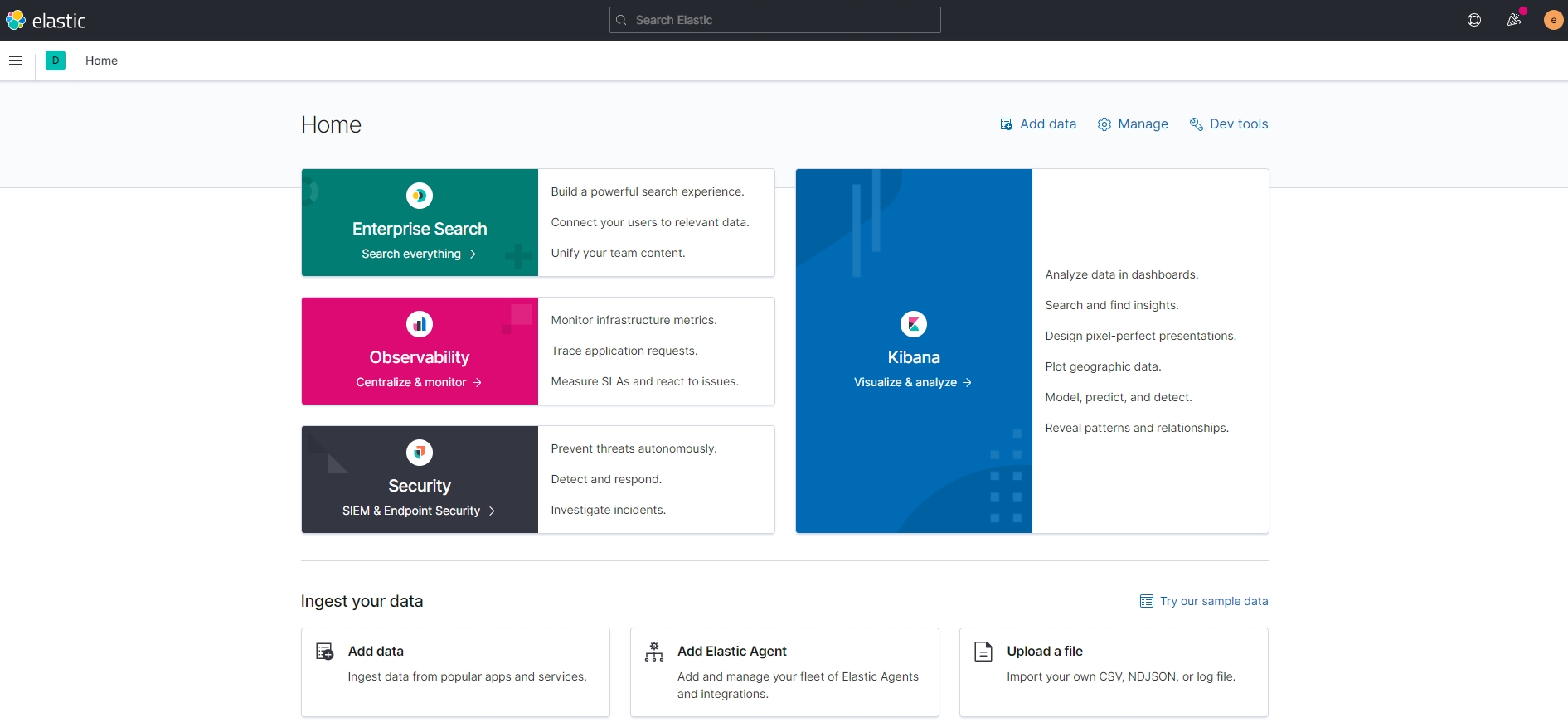

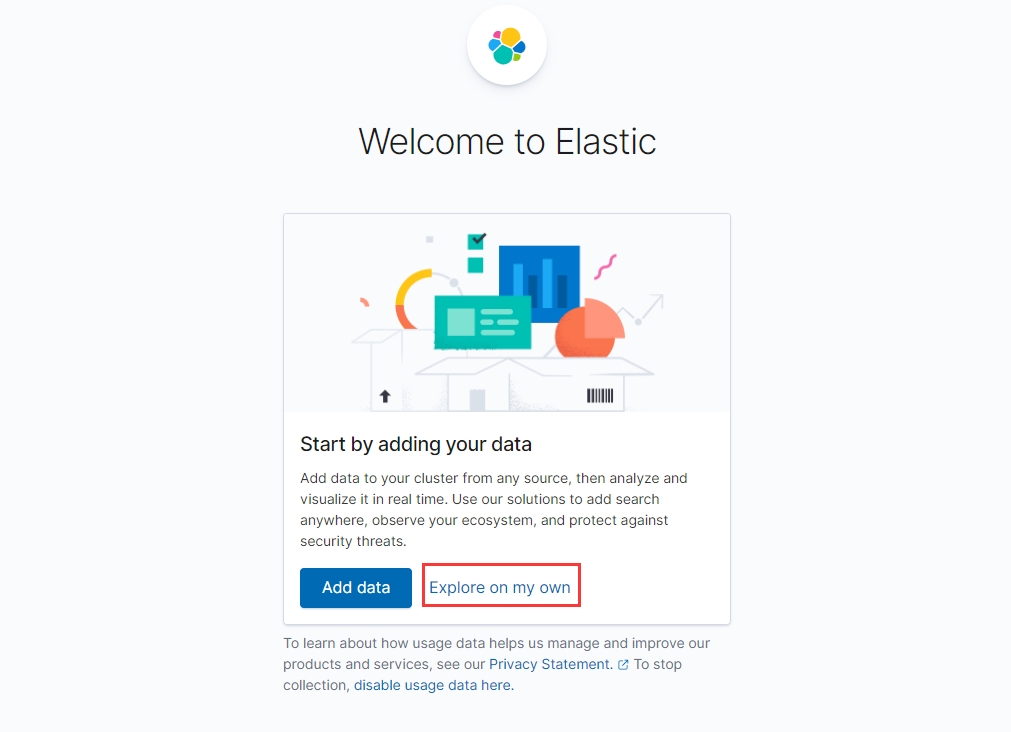

2. 输入账号密码，成功登录到 Elastic Stack 后台\
> 需要了解更多 Elastic Stack 的使用，请参考官方文档：ELK Documentation
#### 出现问题？[](https://support.websoft9.com/docs/elastic#%E5%87%BA%E7%8E%B0%E9%97%AE%E9%A2%98)
若碰到问题，请第一时刻联系 **技术支持**。也可以先参考下面列出的问题定位或 **FAQ** 尝试快速解决问题。
### Elastic Stack 入门向导[](https://support.websoft9.com/docs/elastic#elastic-stack-%E5%85%A5%E9%97%A8%E5%90%91%E5%AF%BC)
Elastic Stack 的数据源多种多样，这里用常见的日志文件为 Logstash 的输入为例，步骤如下：
1. 在 Logstash 的配置文件中设置索引"mytest"，并重启容器
```
input{
file{
path => "/var/log/yum.log"
type => "elasticsearch"
start_position => "beginning"
}
}
output {
elasticsearch {
hosts => "elasticsearch:9200"
user => "elastic"
password => "xxxxx"
index => "mytest"
}
}
```
```
cd /data/apps/elastic
docker-compose down
docker-compose up -d
```

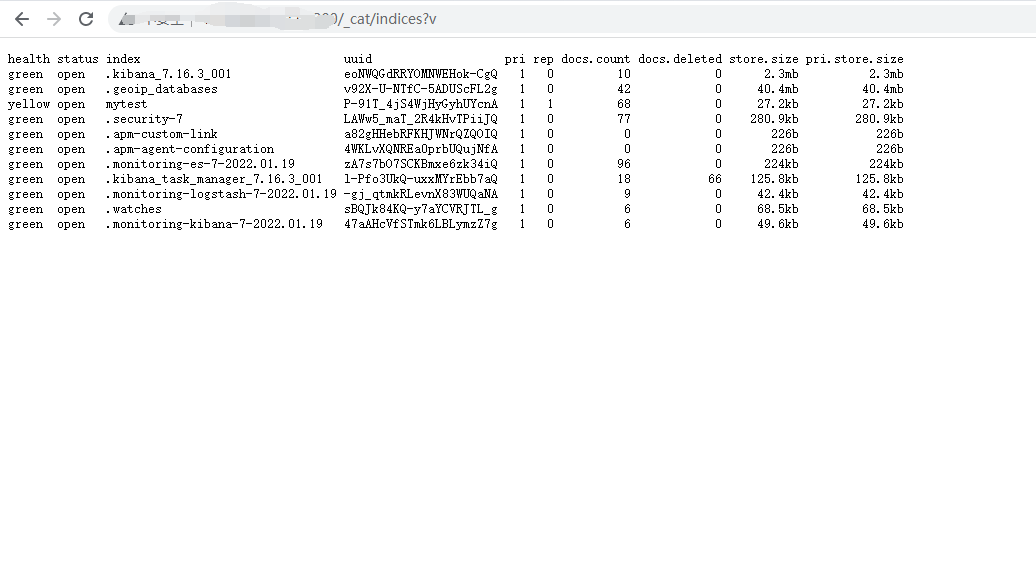

2. 验证 Elasticsearch 和 Logstash 是否成功连接，索引数据是否生效(通过 URL 验证： IP:9200/cat/indices?v)

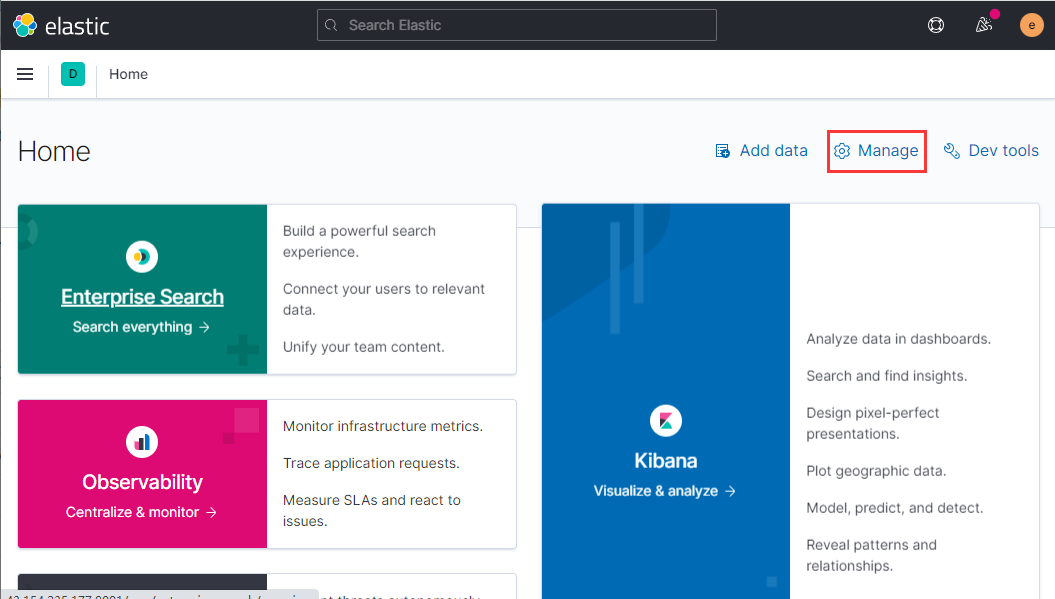

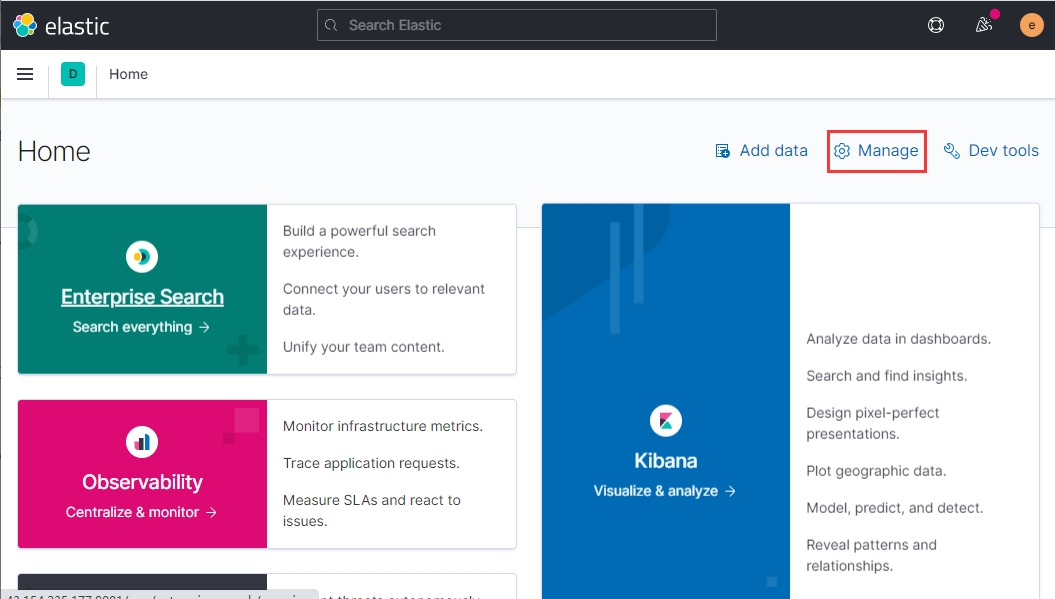

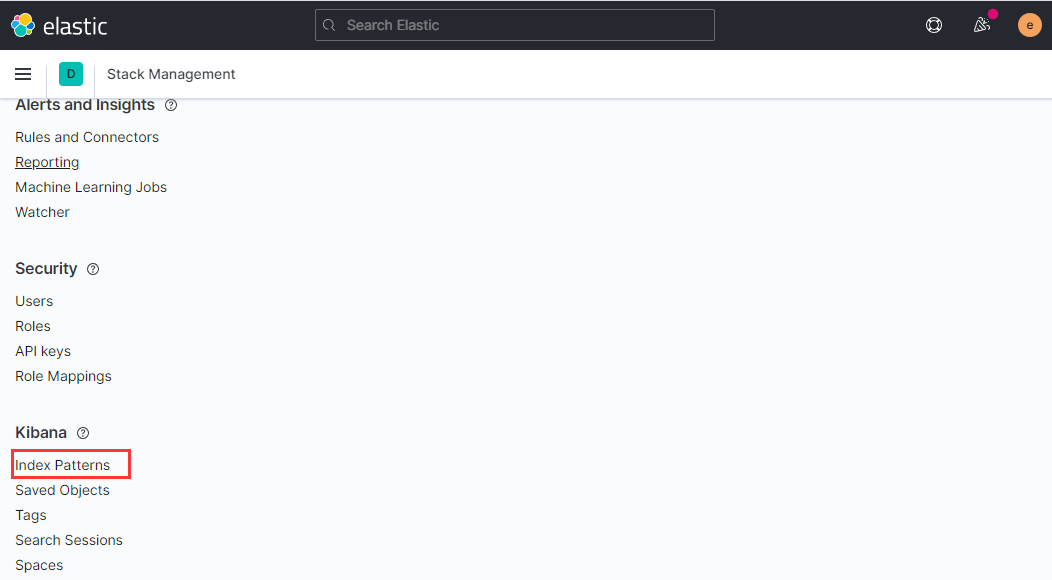

3. 登陆 Kibana，点击【Manage】，再点击右侧菜单的【Index Patterns】

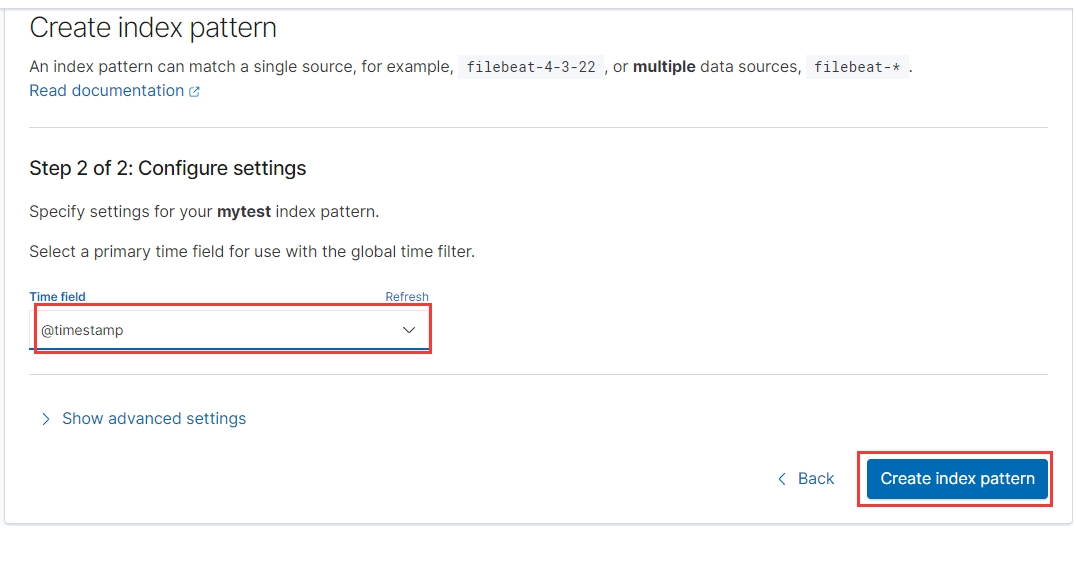

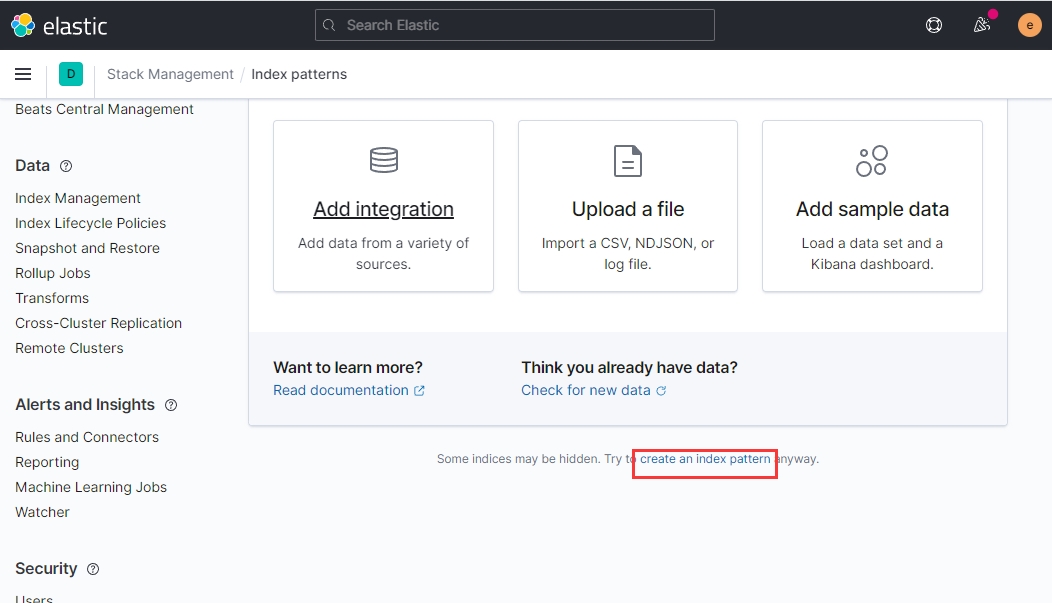

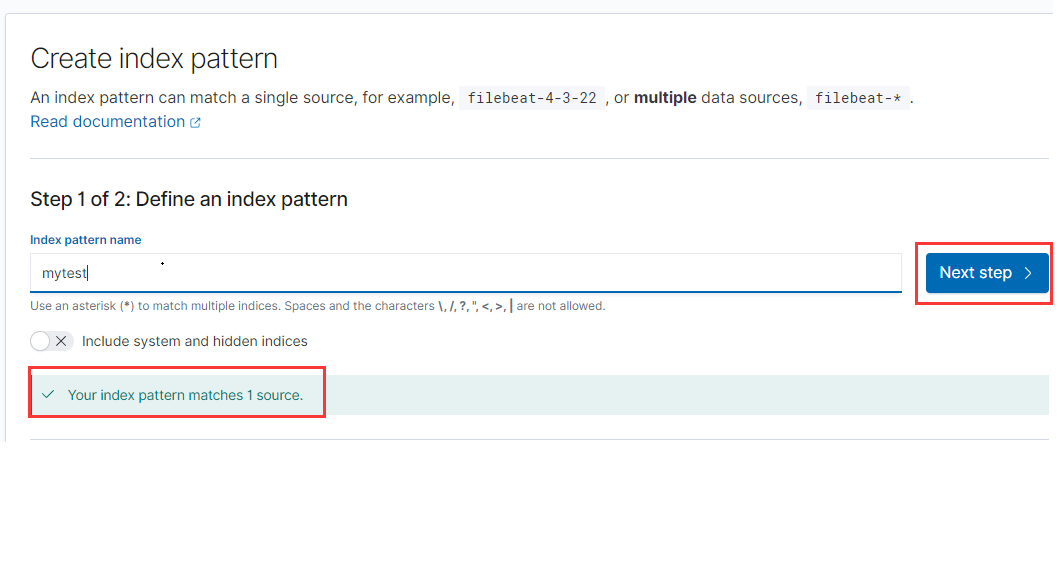

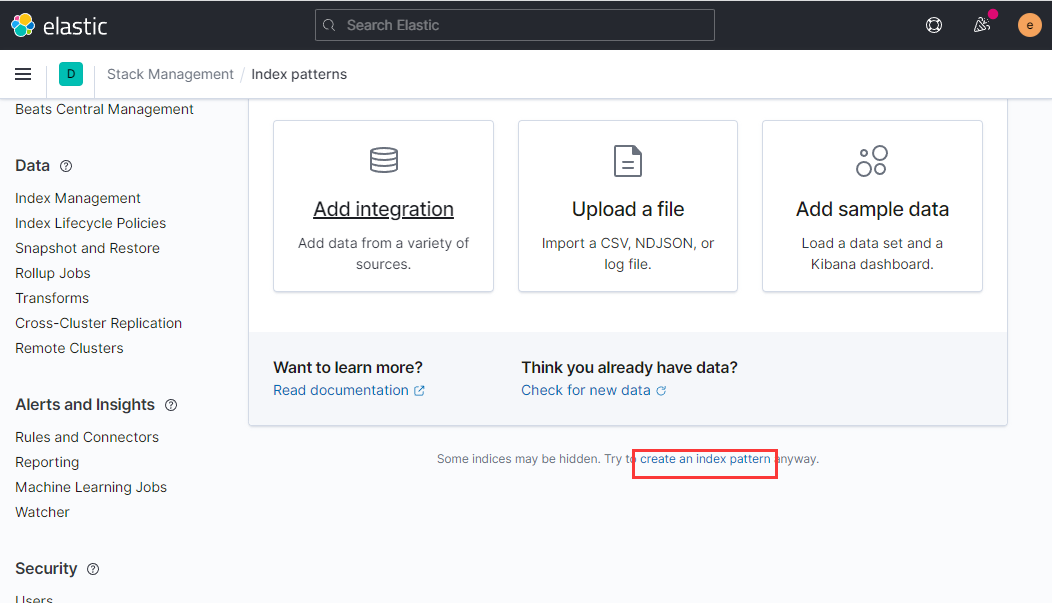

4. 检索"mytest"，根据提示完成创建

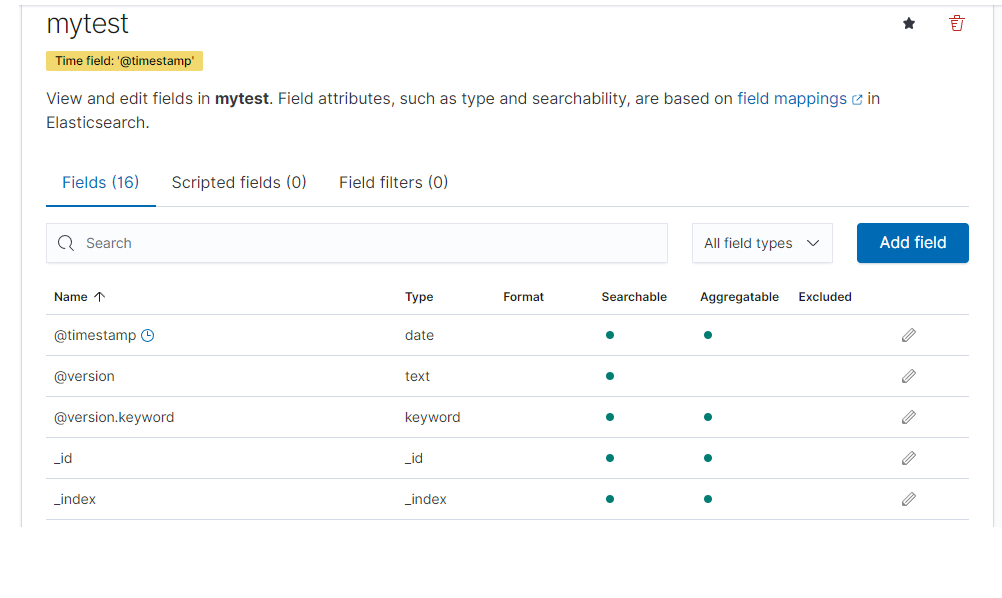

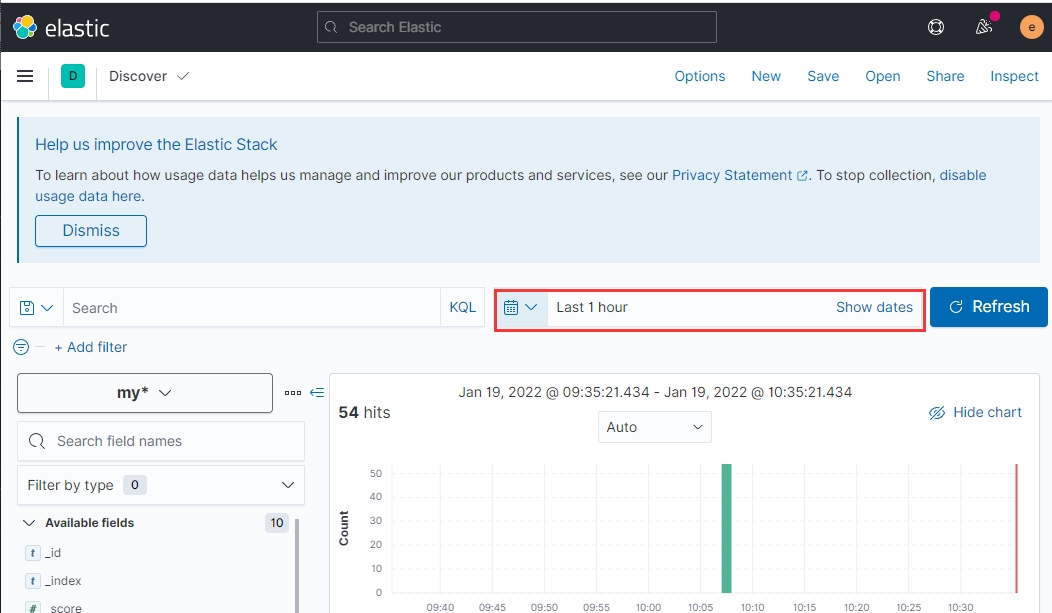

5. 索引在 Kibana 创建成功，可以用时间戳在此检索数据
### Elastic Stack 常用操作[](https://support.websoft9.com/docs/elastic#elastic-stack-%E5%B8%B8%E7%94%A8%E6%93%8D%E4%BD%9C)
#### Logstash 连接 Elasticsearch[](https://support.websoft9.com/docs/elastic#logstash-%E8%BF%9E%E6%8E%A5-elasticsearch)
Logstash 作为数据的采集者，它是如何将数据传输到 Elasticsearch 这个数据存储中的呢？
1. 编辑 Logstash 配置文件
2. 新增一个 pipeline 的配置文件，其内容如下：
```
input{
file{
path => "/var/log/*.log"
type => "elasticsearch"
start_position => "beginning"
}
}
## Add your filters / logstash plugins configuration here
output {
elasticsearch {
hosts => "elasticsearch:9200"
user => "elastic"
password => "elastic123"
index => "mytest"
}
}
```
> 以上配置段中的 **output** 需要使用 elasticsearch 的数据库连接账号。
#### 配置 SMTP[](https://support.websoft9.com/docs/elastic#%E9%85%8D%E7%BD%AE-smtp)
Elastic Stack 配置 SMTP 发邮件的步骤：：
1. 在邮箱管理控制台获取 SMTP 相关参数
2. 登录 Elastic Stack 控制台，依次打开：【Stack Management】>【Watcher】，增加一个 Email Action
3. 编辑 Elasticsearch 的配置文件，增加 Email 配置
#### 重置密码[](https://support.websoft9.com/docs/elastic#%E9%87%8D%E7%BD%AE%E5%AF%86%E7%A0%81)
常用的 Elastic Stack 重置密码相关的操作主要有修改密码和找回密码两种类型：
**修改密码**[****](https://support.websoft9.com/docs/elastic#%E4%BF%AE%E6%94%B9%E5%AF%86%E7%A0%81)
登录 Kibana 后，右上角用户图标的【用户配置文件】即可修改密码
**找回密码**[****](https://support.websoft9.com/docs/elastic#%E6%89%BE%E5%9B%9E%E5%AF%86%E7%A0%81)
如果用户忘记了密码，需通过重新运行容器的方式重置密码：
```
cd /data/apps/elastic
docker-compose down && docker-compose up -d
```
`.env`文件中的 **DB\_ES\_PASSWORD** 变量即重置后的密码
### Elastic Stack 参数[](https://support.websoft9.com/docs/elastic#elastic-stack-%E5%8F%82%E6%95%B0)
Elastic Stack 应用中包含 Nginx, Docker 等组件，可通过 **通用参数表** 查看路径、服务、端口等参数。
通过运行`docker ps`，可以查看到 Elastic Stack 运行时所有的 Container：
```
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
4c27ee6b8e98 logstash:7.13.4 "/usr/local/bin/dock…" 4 minutes ago Up 4 minutes 0.0.0.0:5000->5000/tcp, :::5000->5000/tcp, 0.0.0.0:5044->5044/tcp, :::5044->5044/tcp, 0.0.0.0:9600->9600/tcp, 0.0.0.0:5000->5000/udp, :::9600->9600/tcp, :::5000->5000/udp elastic-logstash
babdf8193e8d kibana:7.13.4 "/bin/tini -- /usr/l…" 4 minutes ago Up 4 minutes 0.0.0.0:9001->5601/tcp, :::9001->5601/tcp elastic-kibana
de14eb80b9f9 elasticsearch:7.13.4 "/bin/tini -- /usr/l…" 4 minutes ago Up 4 minutes 0.0.0.0:9200->9200/tcp, :::9200->9200/tcp, 0.0.0.0:9300->9300/tcp, :::9300->9300/tcp
```
#### 路径[](https://support.websoft9.com/docs/elastic#path)
Elastic Stack 包含：Elasticsearch, Kibana, Logstash 等组件
Elastic Stack 安装目录： */data/apps/elastic*\
Elastic Stack 配置目录： */data/apps/elastic/src*\
Logstash 配置文件： */data/apps/elastic/src/logstash/pipeline/logstash.conf*\
Kibana 配置文件： */data/apps/elastic/src/kibana/config/kibana.yml*\
Elasticsearch 配置文件： */data/apps/elastic/src/elasticsearch/config/elasticsearch.yml*
#### 端口[](https://support.websoft9.com/docs/elastic#port)
| 端口号 | 用途 | 必要性 |
| ---- | ------------------ | --- |
| 9200 | Elasticsearch HTTP | 必须 |
| 9600 | Logstash API | 可选 |
#### 版本[](https://support.websoft9.com/docs/elastic#%E7%89%88%E6%9C%AC)
```
docker exec -it elastic-elasticsearch bin/elasticsearch --version
```
#### 服务[](https://support.websoft9.com/docs/elastic#%E6%9C%8D%E5%8A%A1)
```
sudo docker start | stop | restart | status elastic-elasticsearch
sudo docker start | stop | restart | status elastic-logstash
sudo docker start | stop | restart | status elastic-kibana
```
#### 命令行[](https://support.websoft9.com/docs/elastic#%E5%91%BD%E4%BB%A4%E8%A1%8C)
[SQL CLI](https://www.elastic.co/guide/en/elasticsearch/reference/current/sql-cli.html)
#### API[](https://support.websoft9.com/docs/elastic#api)
[ELK API](https://www.elastic.co/guide/en/elasticsearch/reference/current/http-clients.html) 采用 REST API 2.0 规范。
---
